Streamlines

Use this page to generate and inspect 3D streamlines with:

  • cardio-generate-streamlines
  • cardio-visualize-streamlines

Before You Start

  • In the config file, set WRITE_VECTORS = True and TEST = False.
  • Run cardio-tensor on your full dataset.
  • Make sure these outputs exist in OUTPUT_PATH:
    • eigen_vec/
    • FA/
    • angle folders (HA/IA or AZ/EL, depending on ANGLE_MODE)

Note

It is useful to provide a MASK_PATH to avoid placing seeds and tracing streamline outside the sample, even though the FA threshold should avoid this.

Generate Streamlines

Basic example:

$ cardio-generate-streamlines ./parameters_example.conf

Useful options:

  • --seeds: number of seeds (default: 20000).
  • --fa-seed-min: minimum FA to place seeds (default: 0.2).
  • --fa-threshold: minimum FA to continue tracking (default: 0.1).
  • --angle: maximum turning angle (degrees - default: 60.0).
  • --step: integration step length (voxels - default: 0.5).
  • --min-len: minimum streamline length (points - default: 10).
  • --bin: downsampling factor for faster processing.
  • --start-z/--end-z (and x, y variants): process only a sub-volume.

Generated files:

  • OUTPUT_PATH/streamlines.trk

Note

Use --bin if the dataset is too big to fit in RAM. This will bin the eigenvectors and the maps.

Visualize Streamlines

$ cardio-visualize-streamlines ./parameters_example.conf --downsample 5

Useful options:

  • --color-by: auto, elevation, or stored fields like HA, IA, AZ, EL.
  • --list-color-by: list available fields in the .trk.
  • --line-width: tube width.
  • --subsample: keep every Nth streamline.
  • --min-length: filter short streamlines.
  • --crop-x, --crop-y, --crop-z: spatial crop ranges.
  • --screenshot: save a PNG snapshot.

Note

Use --downsample to keep fewer points per streamline and improve rendering performance on large datasets.

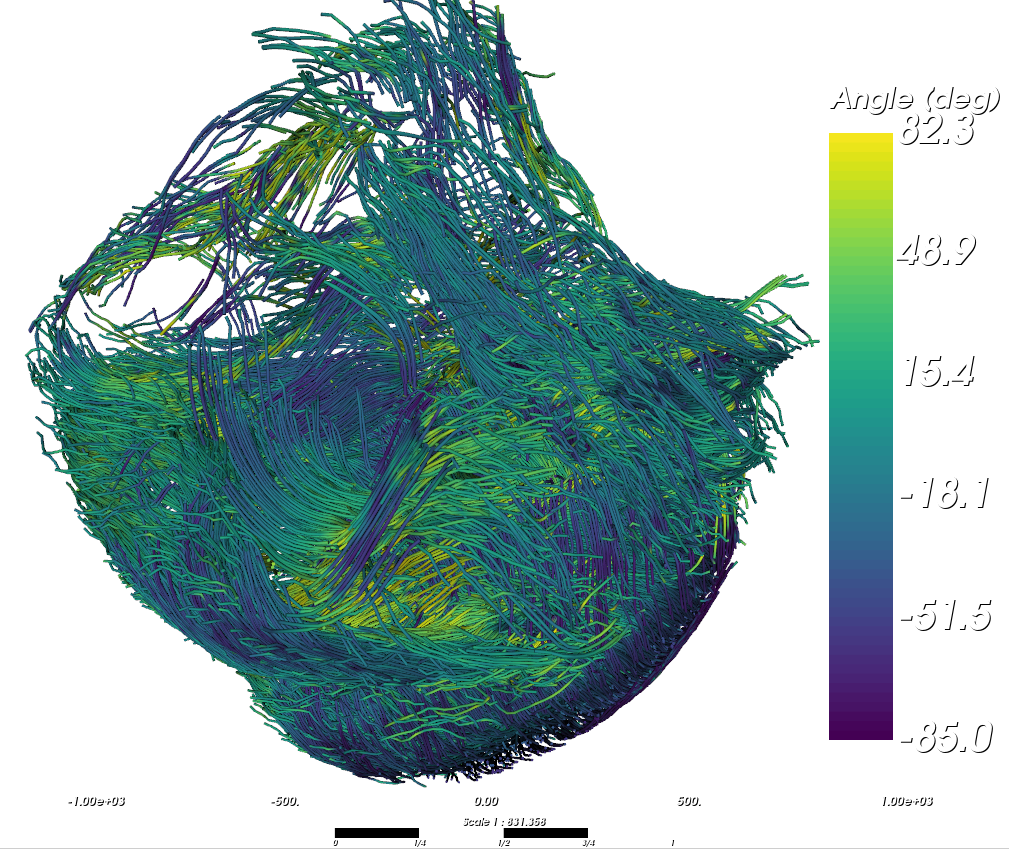

Streamline visualization
Example 3D streamline rendering in a human heart.

The dataset used as an example here can be find at DOI

Keybindings

In the interactive viewer:

  • O: toggle clipping plane on/off.
  • H: show/hide clipping plane gizmo.
  • I: flip clipping plane normal.
  • R: reset clipping plane to center.
  • + / -: increase/decrease streamline thickness.
  • B: toggle background color (black/white).
  • S: show/hide scale bar.
  • P: save a high-resolution PNG snapshot.

Note

During interaction (rotate/pan/zoom), the viewer switches to a low-resolution for better responsiveness, then automatically returns to full resolution when interaction ends.

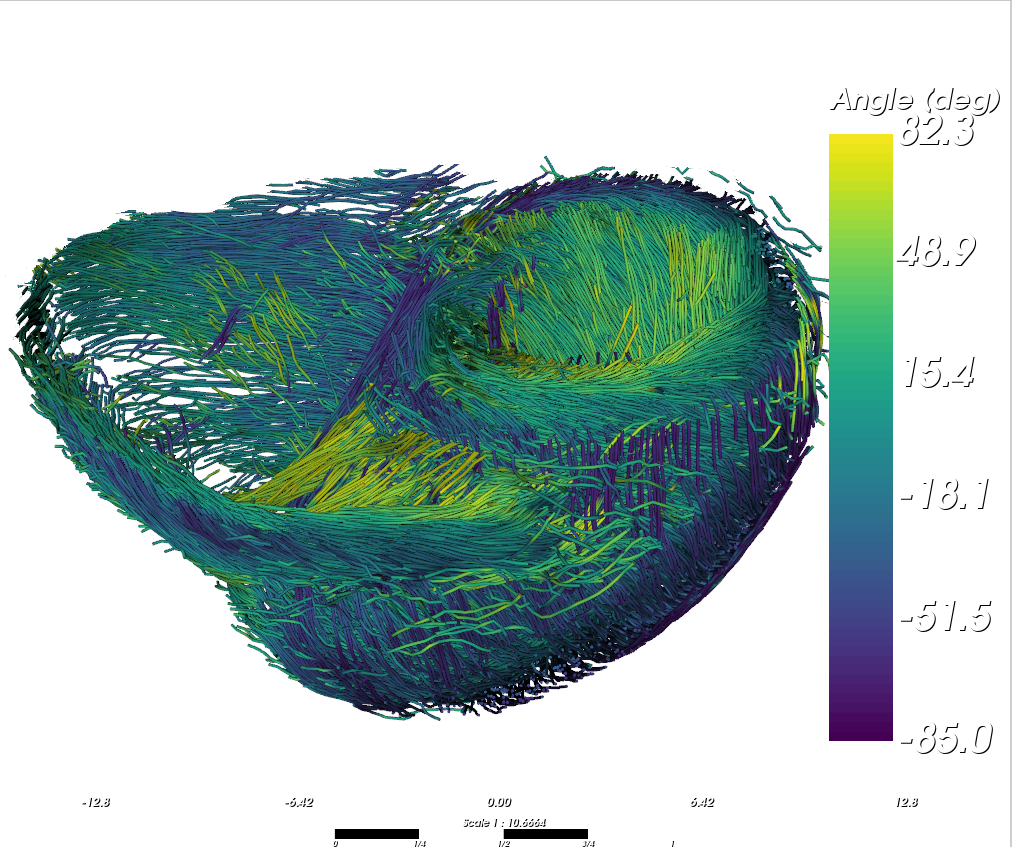

Streamline visualization
Example 3D streamline rendering in a human heart, cropped using the clipping plane.

Quick Tuning Workflow

  1. Start with --seeds 10000.
  2. Check global coverage and continuity.
  3. Increase --seeds if regions are undersampled.
  4. Increase --fa-threshold or decrease --angle to reduce implausible curves.
  5. Use --subsample and --downsample for faster visual inspection.

Warning

Interpretation depends strongly on tracking parameters. Compare conditions only when parameters, such as seeding and thresholds, are similar.
