Cardiotensor ( GitHub release ) is an open-source Python package developed to quantify 3D cardiomyocyte orientation and reconstruct continuous tractography of myoaggregates in volumetric cardiac imaging datasets.

The library is designed for modern high-resolution modalities such as synchrotron tomography (HiP-CT), micro-CT, and 3D optical imaging. It supports datasets up to teravoxel scale through chunk-based and parallelized processing pipelines.

Cardiotensor workflow for 3D orientation analysis

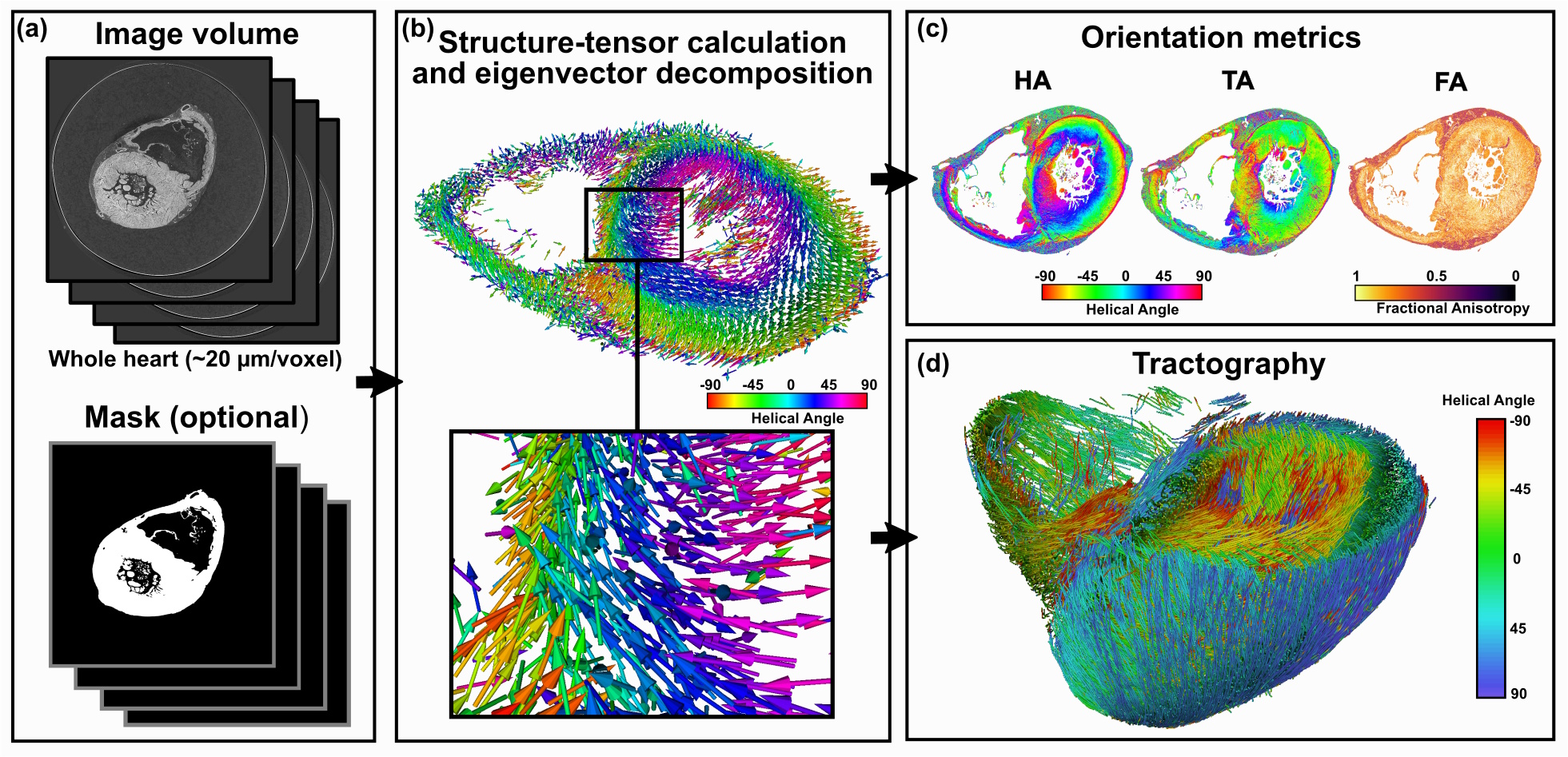

Cardiotensor workflow: orientation computation with structure tensor, helical angle (HA) and intrusion angle (IA) mapping, and streamline-based tractography

Key Features

  • 3D Structure Tensor Analysis: Computes voxel-wise cardiomyocyte orientation from image intensity gradients.
  • Cardiac Microstructure Metrics: Extracts helical angle (HA), intrusion angle (IA), and fractional anisotropy (FA).
  • Tractography: Reconstructs cardiomyocyte trajectories for continuous myoaggregate mapping.
  • Scalable Processing: Optimized for HPC clusters and terabyte-sized volumes using chunked parallelization.
  • Visualization: Interactive 3D rendering of vector fields and streamlines, plus VTK export for ParaView.
  • Tissue-Agnostic: Applicable beyond the heart to other fibrous tissues such as brain white matter, skeletal muscle, and tendon.
Cardiotensor streamline tractography

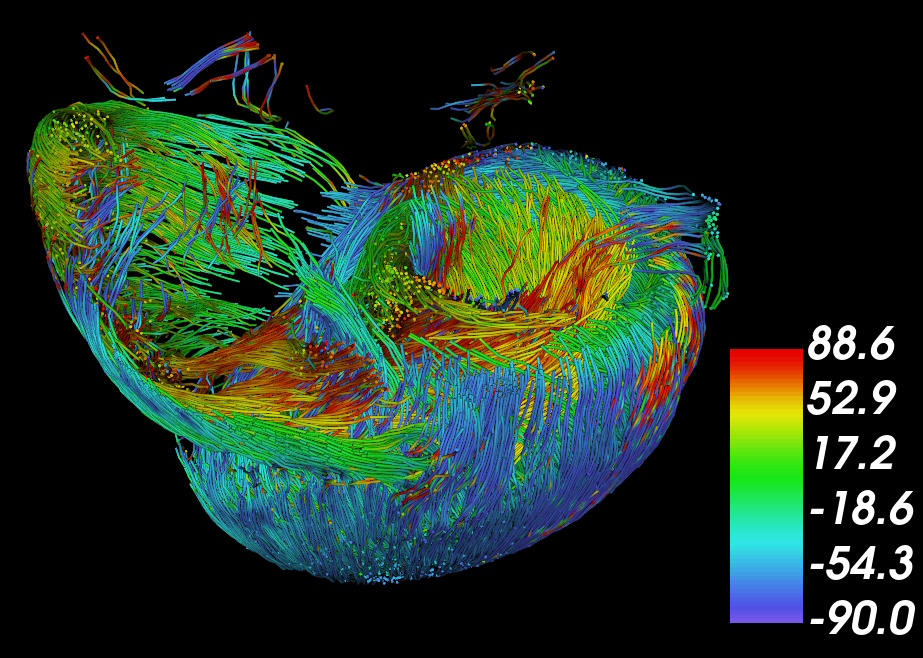

Streamline tractography of cardiomyocyte orientation, color-coded by helical angle (HA)

Why Cardiotensor?

Most established orientation-analysis tools (e.g., MRtrix3, DIPY, DSI Studio) were developed for diffusion MRI. Cardiotensor instead derives orientation directly from imaging intensity gradients, enabling analysis across modalities such as synchrotron tomography, micro-CT, and optical microscopy. Unlike small-scale in-house codes, it is designed to be scalable, reproducible, and openly accessible.

Documentation and Availability

📖 Full documentation, tutorials, and example datasets are available at:
https://josephbrunet.github.io/cardiotensor

Install via pip:

pip install cardiotensor

Acknowledgement

📄 For full details, see the preprint paper (2025).
